The Racecar, Phase 3

Body panels from Hank at GT-Racing that will go on the car.  They arrived in several large, extremely light boxes on 7/7/98.   Everything is fiberglass and carbon fiber construction.  Looks like I have to choose wether to go to the LPR/GGR Autocross on Saturday/Sunday or start putting these panels on.   What would you do?  I think I'm going to stay home and get greasy!

Rear Wing	Front Bumper w/ oil cooler opening
Carbon Fiber dash	Rear bumper
Hood	Rear Fender Flares Front Fender Flares

Part 1 - Front fenders, front bumper, front hood, rear wing.
7/13/98 - Finished the front end replacement of the hood, fenders, bumper and rear wing.  This was quite a project but not all that difficult.  The panels from GT Racing fit extremely well which helped tremendously.  Hank makes a fantastic product!

Part 1 Pictures:

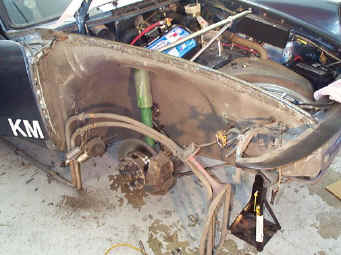

Front end completly disassembled

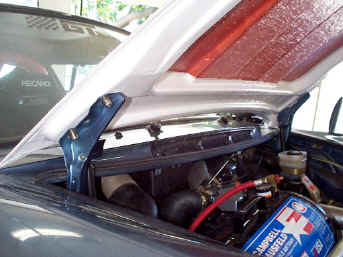

Front hood uses existing mounting bolts and hardware.

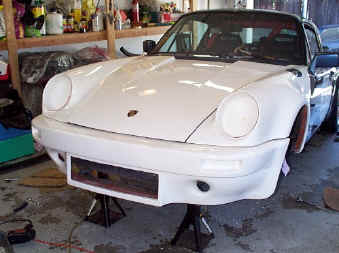

All panels mounted. This was an all day Saturday
project. About 8 hours total including disassembly.

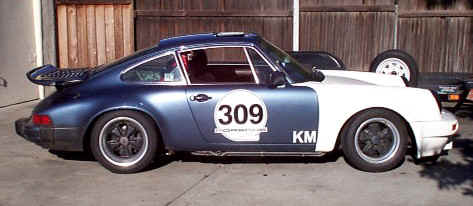

The front end finished & rear wing installed

Part 2 - Rear Quarters.
7-29-98 - This job is a bit more tricky... the rear quarters actually have to be cut off of the car by drilling out all of the spot welds and then the new ones "glued" on with "Corvette Panel Adhesive" (thanks for the pointers, Hank!).  I opted to have my body shop do this work.  $800 and two days later and they'll look as good as new!

Part 2 Pictures - these are at the bodyshop with work in progress

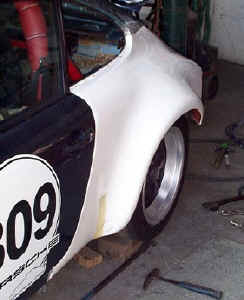

Rear quarter in place and ready for 11" wheels!

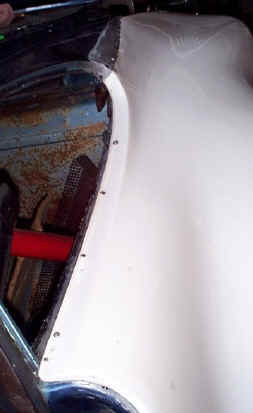

Lots of cuts and gluing.  The screws hold the panel in place
as the glue dries and are then removed afterwards.

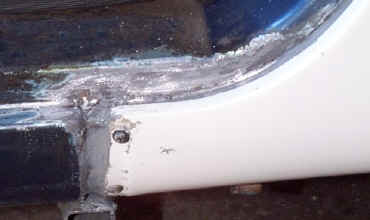

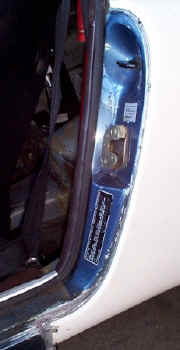

Again, screws hold the panel in place
while the glue dries.

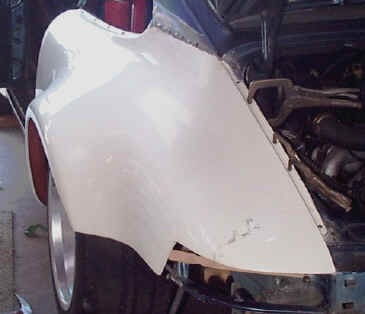

Clamps & screws hold the panel in place while the glue dries.

More pictures to come after I pick up the car...
